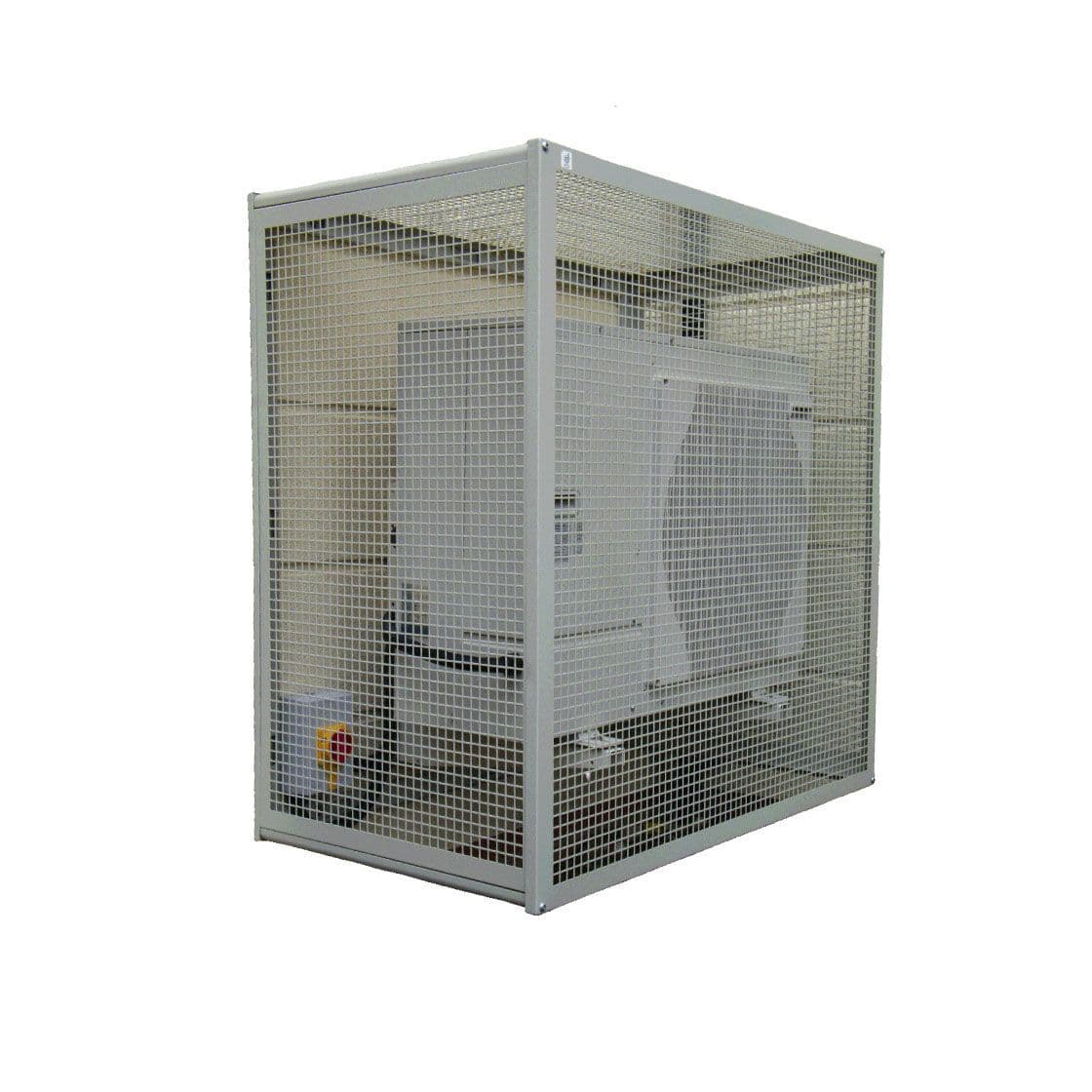

500 Deep Condenser Cages Guards

500 Deep Series Cages

Additional bottom and back panels are available for stand alone / high wall options
All bolts are allen-headed for added security.
Quick and easy to install and access for maintenance.
Split back panel makes it easy to retro fit.

Part Code	Extra Base Panel	Extra Front Panel
CG-500S	CG-500-BPSML	CG-500-FPS
CG-500M	CG-500-BPSML	CG-500-FPM
CG-500L	CG-500-BPSML	CG-500-FPL

E: External - I: Internal

Part Code	Size	E: Height	E: Width	E: Depth	I: Height	I: Width	I: Depth	Weight
CG-500-S	S	620mm	1050mm	500mm	590mm	990mm	470mm	13kg
CG-500-M	M	1020mm	1050mm	500mm	990mm	990mm	470mm	18kg
CG-500-L	L	1420mm	1050mm	500mm	1390mm	990mm	470mm	23kg
