Aspen Endurance Boiler Pump FP3501

Boiler Condensate Removal Pump

The Aspen Endurance has been ruggedised to maximise reliability in boiler applications. Its construction allows short infrequent temperature excursions to 85°C.
It can handle pH > 2.2 for applications where a neutraliser is not required.

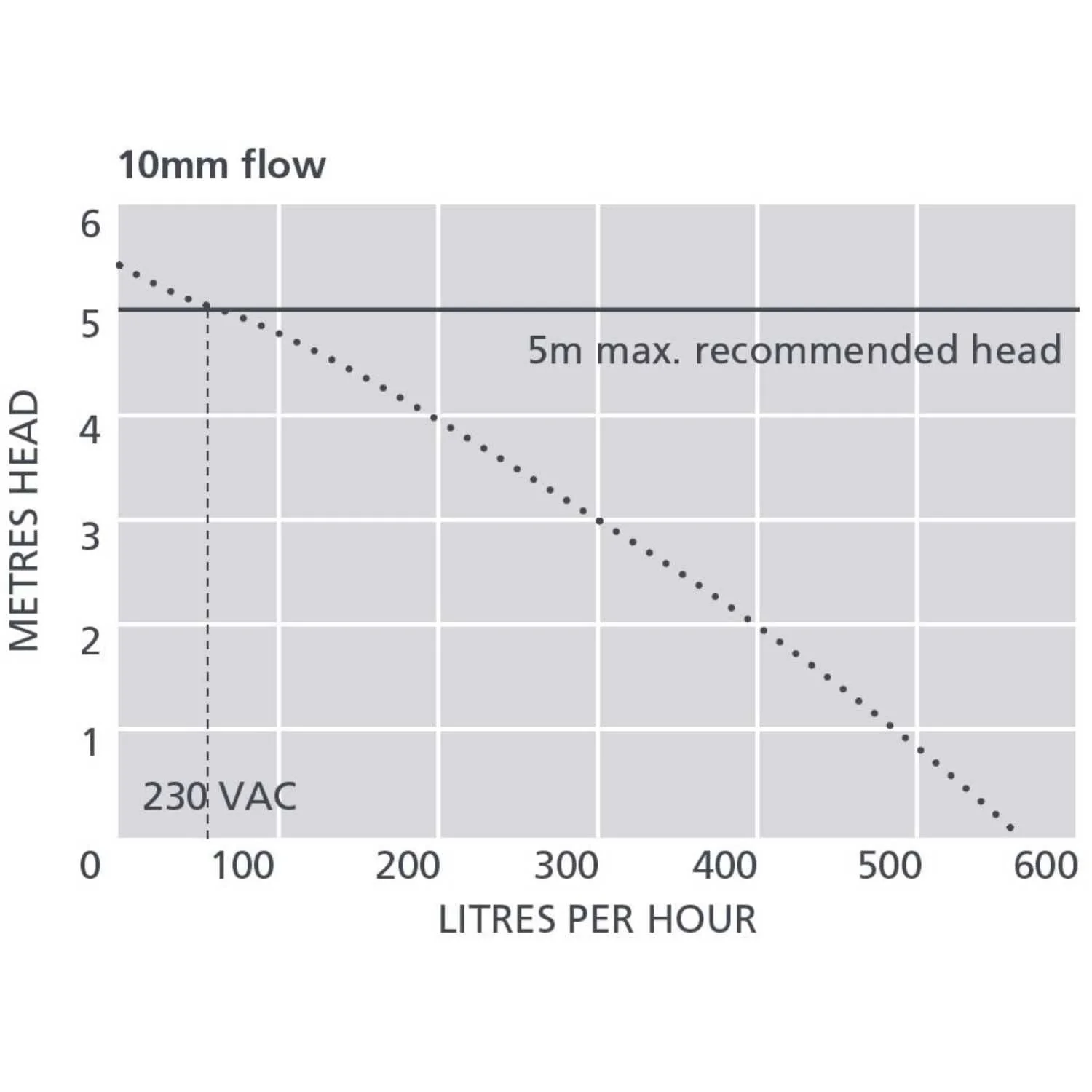

Max head is 5.5m and flow is 550L/h / 9L/m / 0.15L/s.

Key Features
Stainless steel motor shaft
Max. working temperature 60°C with short infrequent excursions to 85°C (<5 min)
Thermally protected maintenance free motor
IP24 protection against water splashes
Outlet for 6mm or 10mm Hose

Suitability
Up to 200 kW / 682,000 Btu/h
Suitable for acidic condensate with pH >2.2 and <2.2 with neutraliser
Spirit level for ease of install
Perfect for... Larger domestic & commercial condensing boilers

Specification
Max flow 550 L/h @ 0m head
Max head 5m
Tank capacity 1.5L
44 dB(A)
230v 50/60Hz 0.8A
Max temp output 60c
IP24
Safety Switch 3A Normally closed
