Blue Diamond MegaBlue Pump with Reservoir
Blue Diamond MegaBlue Condensate Pump with Reservoir Sensor - X87-813
Includes Fail Safe Alarm
Ideal for air conditioning and refrigeration
The MEGABLUE® is the Juggernaut of the condensate removal range. Using the same patented rotary diaphragm technology to the rest of the range, the MEGABLUE® still offers ultra-quiet, ultra-reliable characteristics, whilst being able to pump up to six storeys high. The pump is totally self-priming, and offers advertised flow even in high lift and high head applications, a unique feature in the condensate removal pump market. Capable of running dry and pumping debris the MEGABLUE® is ideal for installations where increased pipe runs are required.
Performance
| Max flow | Max head | Max suction lift |
| 50 litres / hour | 20 metres | 7 metres |
The MegaBlue can be mounted in any orientation up to 7m from the AC Unit.

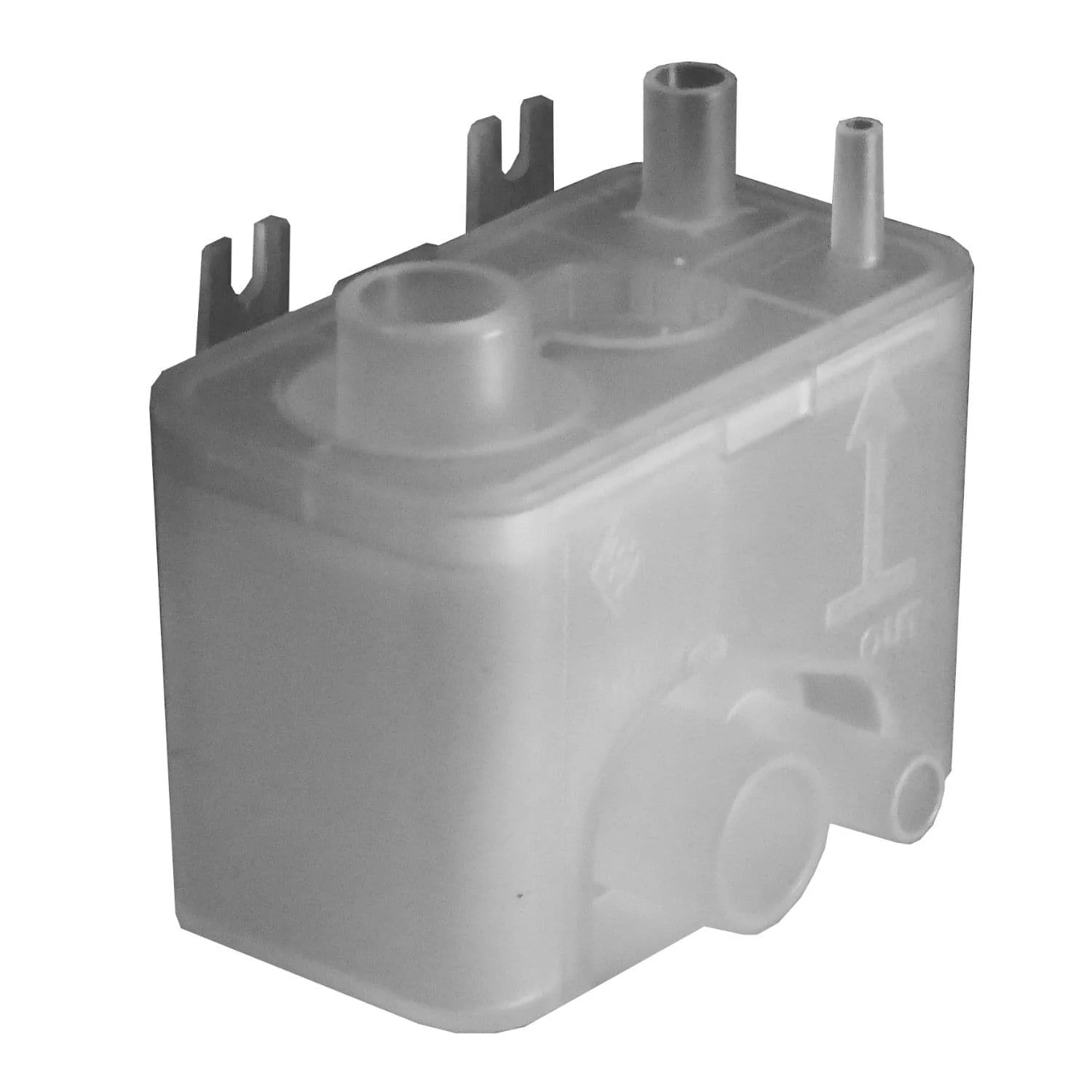

MEGABLUE RESERVOIR SENSOR / C21-008
With no moving parts, the MEGABLUE reservoir sensor offers a reliable alternative to stuck or sunken float switches. Incorporating the patented and proven BLUEDIAMOND thermistor technology, the hi-low solid state level sensor only runs the pump when condensate is produced.
FSA-
Fail safe alarm, a volt free relay designed to switch the AC unit off, but leaves the pump running continuously when the condensate reaches a critical point in the reservoir.
Original: $220.10
-65%$220.10
$77.03
Description
Blue Diamond MegaBlue Condensate Pump with Reservoir Sensor - X87-813
Includes Fail Safe Alarm
Ideal for air conditioning and refrigeration
The MEGABLUE® is the Juggernaut of the condensate removal range. Using the same patented rotary diaphragm technology to the rest of the range, the MEGABLUE® still offers ultra-quiet, ultra-reliable characteristics, whilst being able to pump up to six storeys high. The pump is totally self-priming, and offers advertised flow even in high lift and high head applications, a unique feature in the condensate removal pump market. Capable of running dry and pumping debris the MEGABLUE® is ideal for installations where increased pipe runs are required.
Performance
| Max flow | Max head | Max suction lift |
| 50 litres / hour | 20 metres | 7 metres |
The MegaBlue can be mounted in any orientation up to 7m from the AC Unit.
MEGABLUE RESERVOIR SENSOR / C21-008
With no moving parts, the MEGABLUE reservoir sensor offers a reliable alternative to stuck or sunken float switches. Incorporating the patented and proven BLUEDIAMOND thermistor technology, the hi-low solid state level sensor only runs the pump when condensate is produced.
FSA-
Fail safe alarm, a volt free relay designed to switch the AC unit off, but leaves the pump running continuously when the condensate reaches a critical point in the reservoir.
