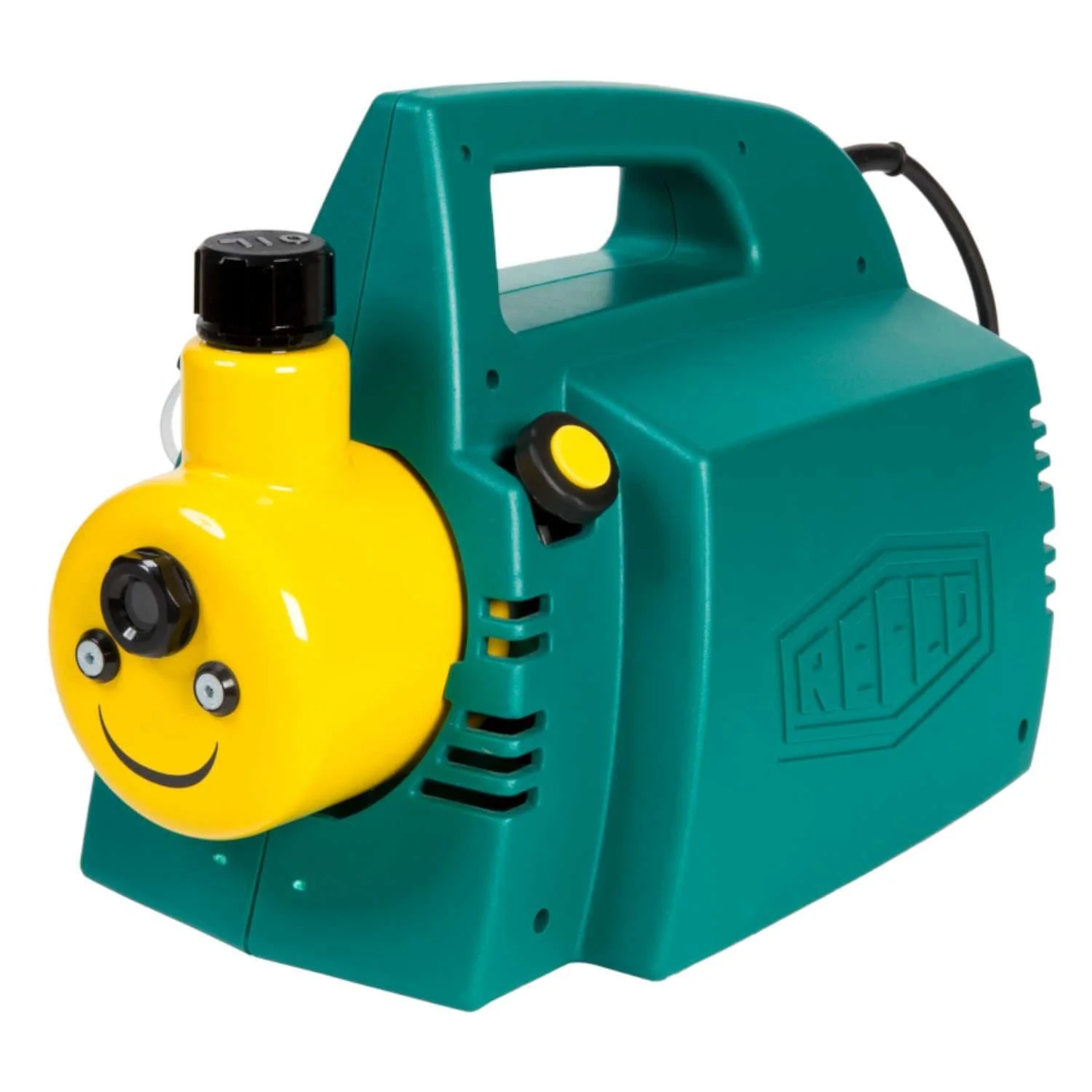

Refco Vacuum Pump RL-2
Refco Vacuum Pump RL-2
The most compact and lightweight high performance vacuum pump in the REFCO range. High-quality components and perfected technology maintain the high performance of the two-stage rotary vane pump even under maximum load, so that the desired deep vacuum is reached faster.
Send in your used pump: we will overhaul it at a flat rate! Thus your vacuum pump purchase becomes a long-term investment in a quality tool!
- Low weight and highest quality thanks to the use of high-quality materials
- Gas ballast valve
- Internal oil circulation for optimum lubrication
- Easy reading of the optimum oil level (sight glass middle)
- Large oil filler neck for easy and clean filling of oil
- Special filter reduces oil mist at the blow-out nozzle
- Stable and ergonomic handle
- Integrated on/off switch against damage and unintentional operation
Specification
| Flow Rate | 35 l/min |
| End Vacuum | 15 micron |
| Number of Stages | 2 |
| Voltage | 220 - 240 VAC |
| Frequency | 50 / 60 Hz |
| Energy Consumption | 0.16 kW |
| Rotational Speed | 2,400 rpm |
| Protection Class | I |
| Oil Tank Volume | 125 ml |
| Noise Level | 70 dB(A) |
| Gas Connection | 1/4" SAE |
| Packaging | Cardboard box |
| Material | Steel | Polypropylene |
| Colour | Yellow (RAL 1023) | Green (RAL 6026) |
| Standards | EN 60335-1 |
| EN 60034-1 | |
| EN 1012-2 | |
| EN ISO 12100 | |
| RoHS Conformity | Yes |
Click here to view the product on the Refco website
Original: $777.26
-65%$777.26
$272.04
